Unfortunately, some plotters will not print correctly with OfficePro.

If you are using one of these plotters, use SutView.

SutView is a new viewer being developed at Suttles Logging.

With SutView :

• Import additional curves into the mud log.
• Generate custom LAS files with just the data you need.
• Generate CSV files. (Plain text data separated by commas.)
• Generate TIFF files.
• View Total Gas in a Logarithmic scale.
• Load two logs for correlation in the same window.
• Easily Print to any Plotter or Printer.
• SutView will remember printer settings that are assigned to it.

If you followed the instructions for installing OfficePro in this help file, you already have SutView installed.

Click Here for instructions on Installing OfficePro

Before printing the first time, setup the printer in Printing Preferences from the Printers and Faxes folder.

For banner logs on a standard printer use these settings:

• 8.5 x 11 paper (or any setting with a page length that does not contain a fraction)
• Set the Paper to Banner
• Set the Orientation to Portrait

For printing to a plotter, try these settings:

• Set the page length to a value longer than the log you are printing or to a length that does not have a fraction.
• If there is an option for page separation, turn it off.
• Set the width of the page to the desired width of the log.

To Print a Log

• Right click on a Suttles Mud log

that is saved on your computer.

• Click Open With SutView

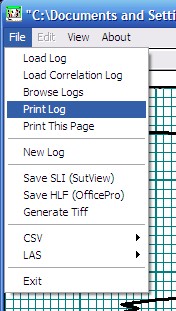

• When the log opens, Click File

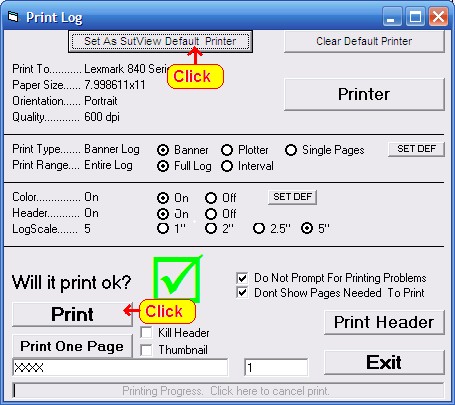

• Click Print Log

• If you have set up the plotter to print with Sutview and it should

always use these settings, click Set As SutView Default Printer.

• Click Print

• Due to the varied settings on plotters, SutView will not be able

to determine beforehand if a particular setting will work.

Thats it. If you have any problems, or need more help, feel free to call any time.

Jay Scarpa (JScarpa@sutlog.com)

Harlan Martin (Harlan@sutlog.com)

Suttles Logging Inc.

Office: 432-687-3148
