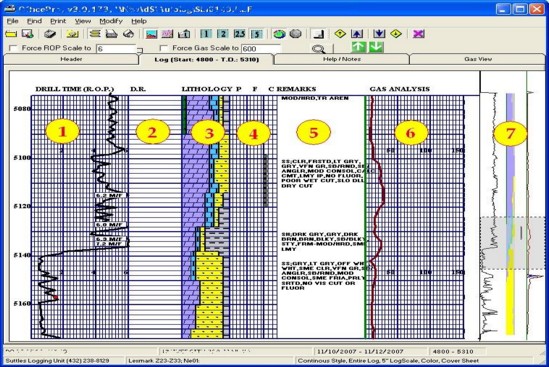

ROP

ROP in Min/Ft.

The Tool Tip Text for this column will display Ft/Hr

Depth Remarks

Includes: Mud, Bit, Flare and Pump information etc..

Lithology

Displays the Lithology for the given depth in 10% increments.

The Tool Tip Text fro this column will display the percentage and the name of the symbol under the mouse pointer.

Porosity, Fluorescence, Cut

Displays the Porosity, Fluorescence and Cut for the given depth.

• Porosity  ~ 0-25 %
• Fluorescence ~ 0 - 100 %
• Cut ~ None..Trace.. Poor.. Fair.. Good

Description

Description of lithology and information about bits, trips, cores etc...

Gas

• Gas analysis for the given depth.
• Black = Total Gas
• Red=C1      Yellow=C2    Blue=C3    Purple=IC4+NC4    Green=IC5+NC5
• The Chromatograph is cycled every 3-9 minutes.
• An integrator built in to the logging program calculates the breakdown of hydrocarbons and enters them on the log.

Thumbnail View

• This view will always display the entire log. As log is added, it will be compressed to display it.
• The gray window represents the 100' of log being displayed.
• Click anywhere on this thumbnail to jump to that position in the log.

(Note: Hold the mouse button as you move up or down the thumbnail view to scroll through the log)
